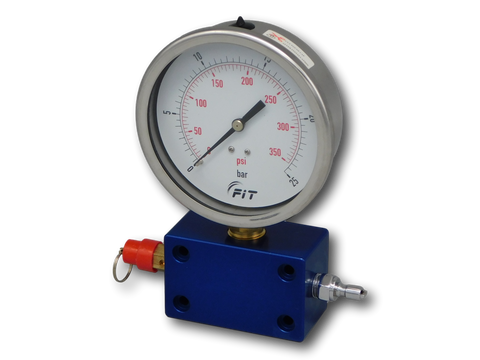

This intermediate pressure gauge is ideal for the professional technician or set-up and will live up to the requirements of higher precision. It can be used stand alone or lying flat and could be wall mounted.

The body of the gauge is made from stainless steel 316 with dual range of 0-350 PSI (increments of 5 PSI) and 0-25 bar (increment of 0.5 bar). The dial size of 100 mm (4") enables easy reading with an accuracy of +/- 1.6% F.S. The gauge is shipped dry but could be filled with glycerin by the user.

The unit is fitted with a 15 bar (217 PSI) pressure relief valve made from brass. The inlet fitting is compatible with a standard BCD inflator hose coupler. The gauge block is machined from durable yet light weight aluminium 6061 with an anodized finish.

 A mounting panel is separately available (SCT-0811 or SCT-0818).
